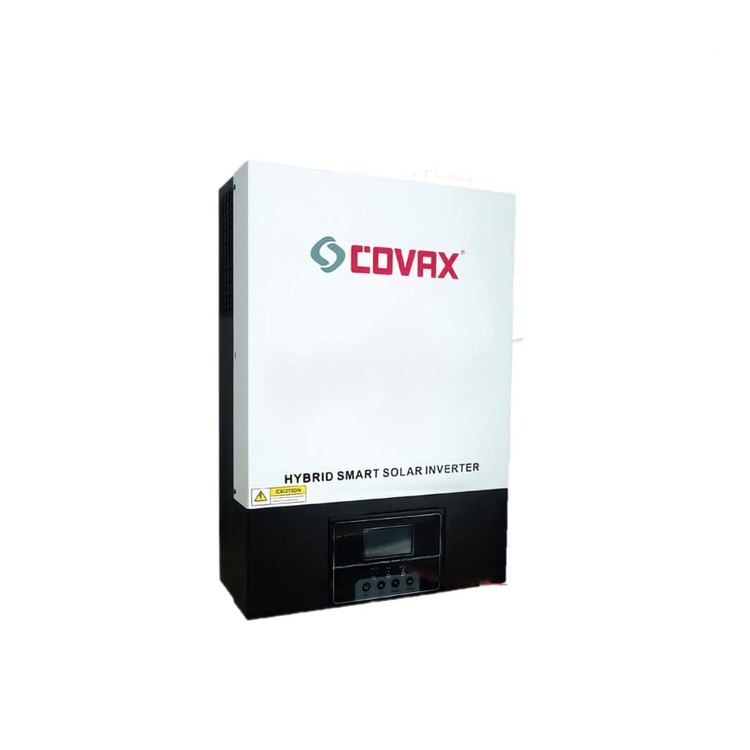

سانورتر 6200 کواکس

SOLAR INVERTER - 6.2KW - OFF GRID - COVAX
برند:COVAX
ناموجود
دیدن محصولات مرتبط
توضیحات
    • Inverter Charger:
    • Model Name: CV-II-M-PLUS 6.2KW-48V
    • Operating Temp Range: -10~50°C
    • PV INPUT:
    • Nominal Operating Volt: 360VDC
    • Vmax: 500VDC
    • PV Input Volt Range: 90~450VDC
    • Imax PV: 27A
    • Full load MPPT Range: 240~450VDC
    • Rated Power ;6500W
    • Max Solar Charging Current: 120A
    • Grid/AC OUTPUT:
    • Nominal OUTPUT Volt: 220/230/240VAC
    • Feed-in Grid VOLT Range: 195~253VAC
    • Feed-in Grid Freq.Range: 49~511+-Hz
    • Nominal Output Current: 27.0A
    • Power Factor Range:>0.99
    • Max Conversion Efficiency(DC/AC):97%
    • Nominal Operating Freq: 50/60Hz
    • AC INPUT:
    • Nominal Operating Volt: 230VAC
    • Max. input current: 40A
    • Nominal Operating Freq: 50/60Hz
    • Surge Power:12400VA
    • Max AC Charging Current: 100A
    • BATTERY:
    • Battery Volt Range: 40~63VDC
    • Max Battery Current: 125A
    • Dimension: 15x30x45cm
