دستهبندی: سانورتر

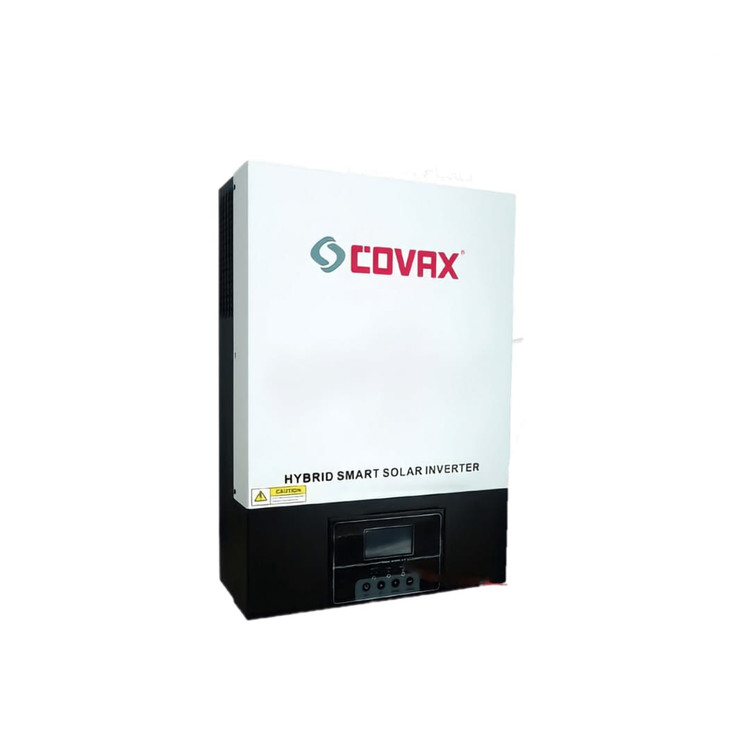

سانورتر 6000 کواکس
SOLAR INVERTER - 6KW - OFF GRID - COVAX
برند:COVAX
توضیحات
-
- Inverter Charger:
- Model Name: CV-II-M-PLUS 6.2KW-48V
- Operating Temp Range: -10~50°C
- PV INPUT:
- Nominal Operating Volt: 360VDC
- Vmax: 500VDC
- PV Input Volt Range: 90~450VDC
- Imax PV: 27A
- Full load MPPT Range: 240~450VDC
- Rated Power ;6500W
- Max Solar Charging Current: 120A
- Grid/AC OUTPUT:
- Nominal OUTPUT Volt: 220/230/240VAC
- Feed-in Grid VOLT Range: 195~253VAC
- Feed-in Grid Freq.Range: 49~511+-Hz
- Nominal Output Current: 27.0A
- Power Factor Range:>0.99
- Max Conversion Efficiency(DC/AC):97%
- Nominal Operating Freq: 50/60Hz
- AC INPUT:
- Nominal Operating Volt: 230VAC
- Max. input current: 40A
- Nominal Operating Freq: 50/60Hz
- Surge Power:12400VA
- Max AC Charging Current: 100A
- BATTERY:
- Battery Volt Range: 40~63VDC
- Max Battery Current: 125A
- Dimension: 15x30x45cm
